DB TECHNOLOGIES SUB 15D
Loaded with 15¿ woofer and featuring band-pass circuitry, the SUB 15D is a remarkably agile and responsive speaker system. Driven by an onboard digipro® digital power amp, this bin packs a powerful low-end punch perfect for rendering kick drums with high SPL.
Speaker TypeActive Bandpass Subwoofer
Acoustical data
Frequency Response [-10dB]35 - 150 Hz
Frequency Response [+/- 3dB]40 - 120 Hz
Max SPL133 dB
Directivityomnidirectional
LF15 "
Voice Coil LF3 "
Amplifier
Amp Technologydigipro
Amp ClassClass D
LF Amp800 W/RMS
CoolingConvection
Processor
ControllerAnalog
Phase0, 180 °
LimiterRMS, Peakt, thermal
Delay OptionNo
Crossover Frequency LF-MF90, 120 Hz
Slope LF-MF24 dB/Octave

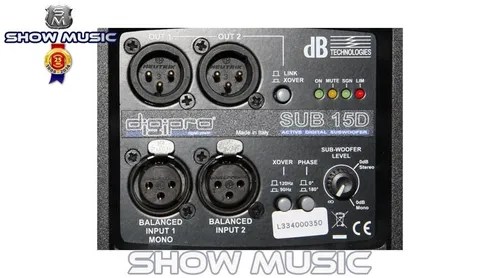

Input Section
Signal Input2x XLR
Input Sensitivity [dBu]Max. -3 dBu
Signal Output2x XLR X-Over Out/ Link Out
Power Socket1x Powercon In
1x Powercon Out
Voltage Range240 V
Mechanics
HousingMultiplex, birch plywood
Housing DesignSquare
ColorBlack
Surface TextureAcrylic laquer
CastorsNo
Handles2x side
Pole MountM20
Front GrilleWooden
Metall grille
Width436 mm (17.44 in)
Height600 mm (24 in)
Depth600 mm (24 in)
Weight32 kg (70.55 lbs)
